Altydgedacht Wine Tasting & Deli Restaurant

BIRD'S EYE VIEW 3 DIMENSIONAL VIEW

MILESTONE 1

Milestone 1- layout 1

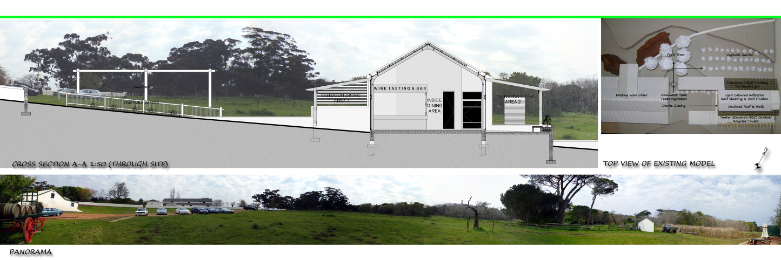

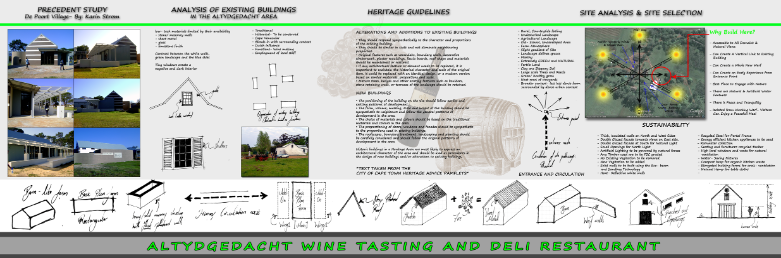

Showing Precedent; Analysis of Existing Buildings on site; Heritage Guidelines; Site Analysis; Site Selection and Sustainability

Milestone 1- layout 2

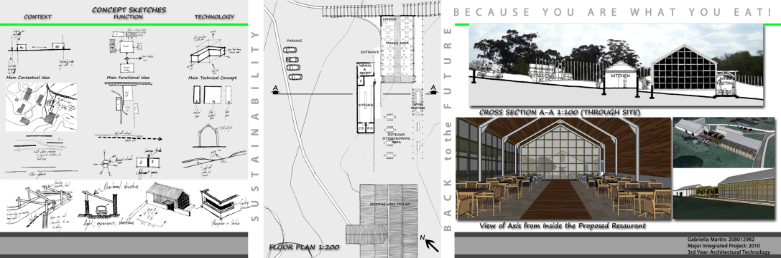

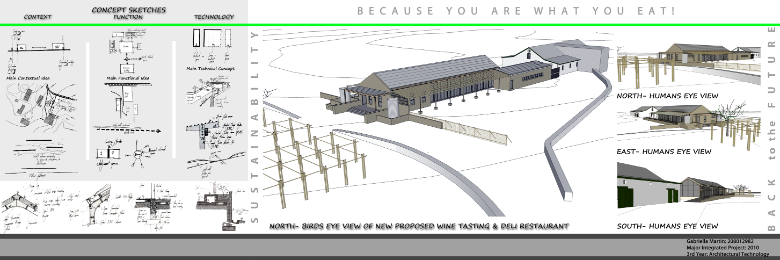

Showing Concept sketches of Proposed design in terms of Context; Function; Technology and Form. It also shows a Plan in context; a cross section and some 3 dimensional views

FINAL DESIGN

Final- layout 1 (CONCEPT SKETCHES & 3 DIMENSIONAL VIEWS)

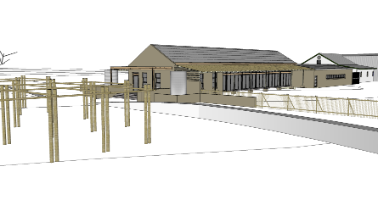

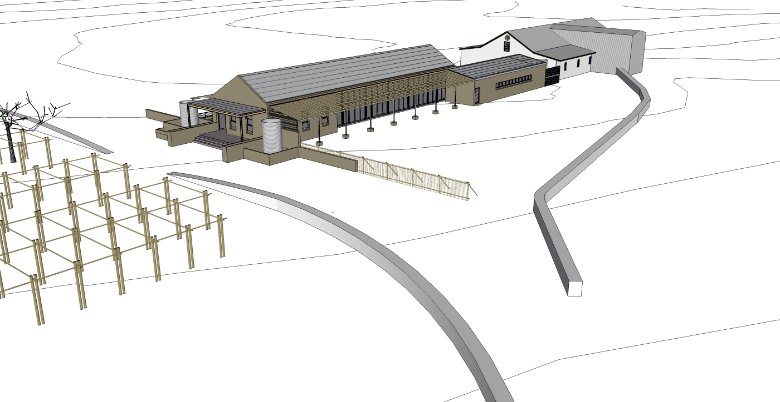

Shows 3 Dimensional views of building in Context

Final- layout 2 (FLOOR PLAN)

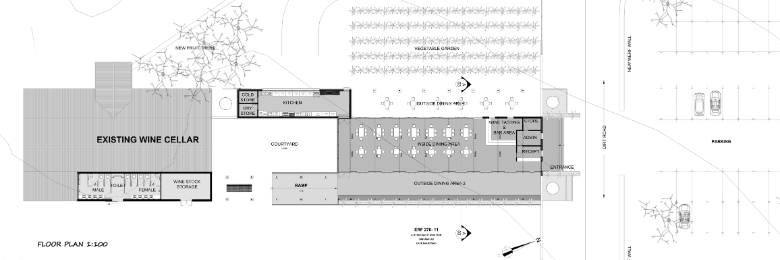

Shows Floor Plan in Context

Final- layout 2 (SECTION)

Shows a Cross Section in Context as well as the factors that assist in the Sustainability of the New Proposed Building

Final- layout 2 (ELEVATIONS)

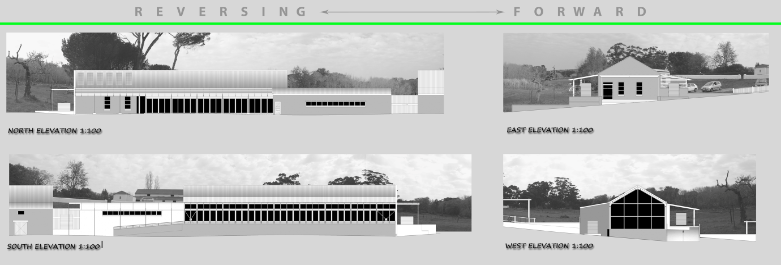

Shows Revolutional Elevations in Context

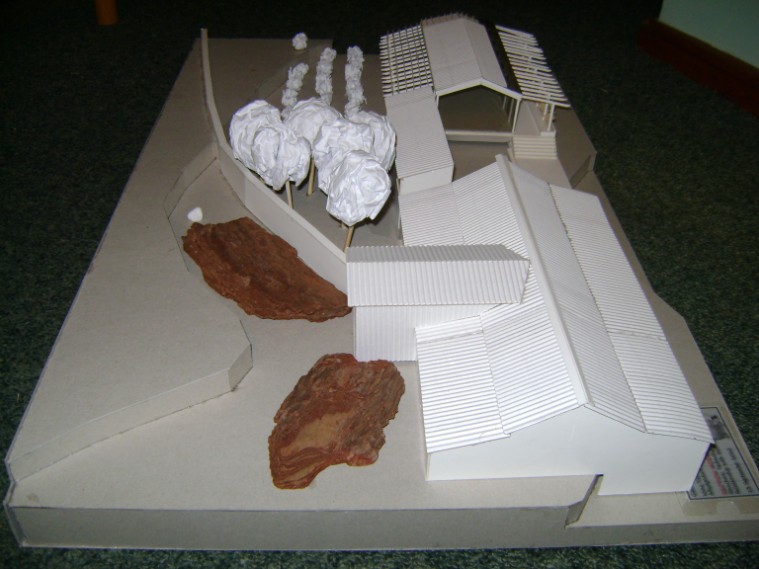

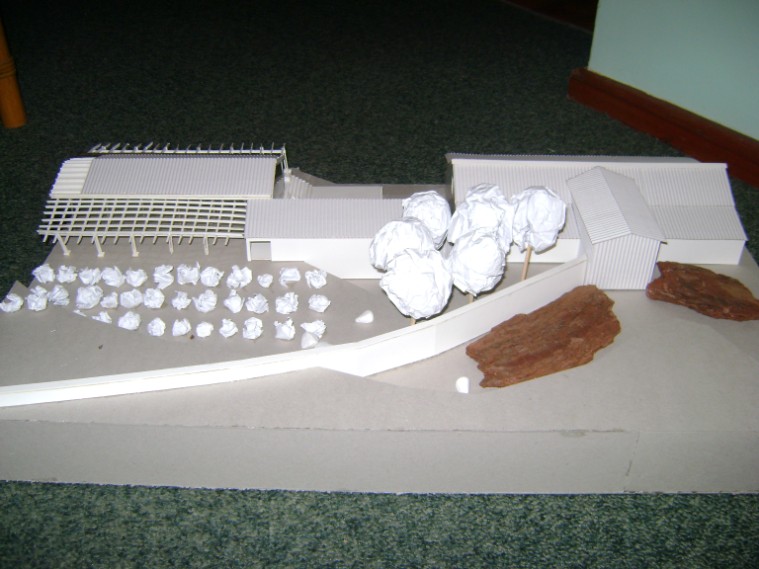

Final Model (01)

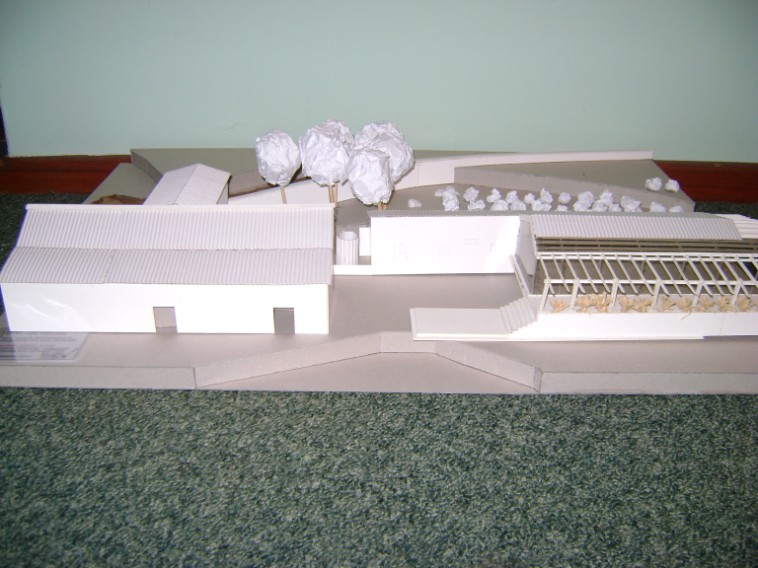

Final Model (02)

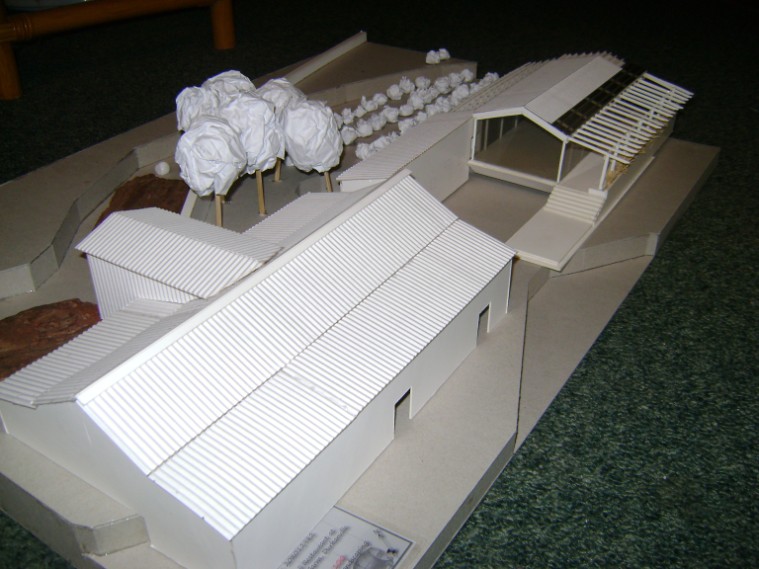

Final Model (03)

Final Model (04)

WORKING DRAWINGS
